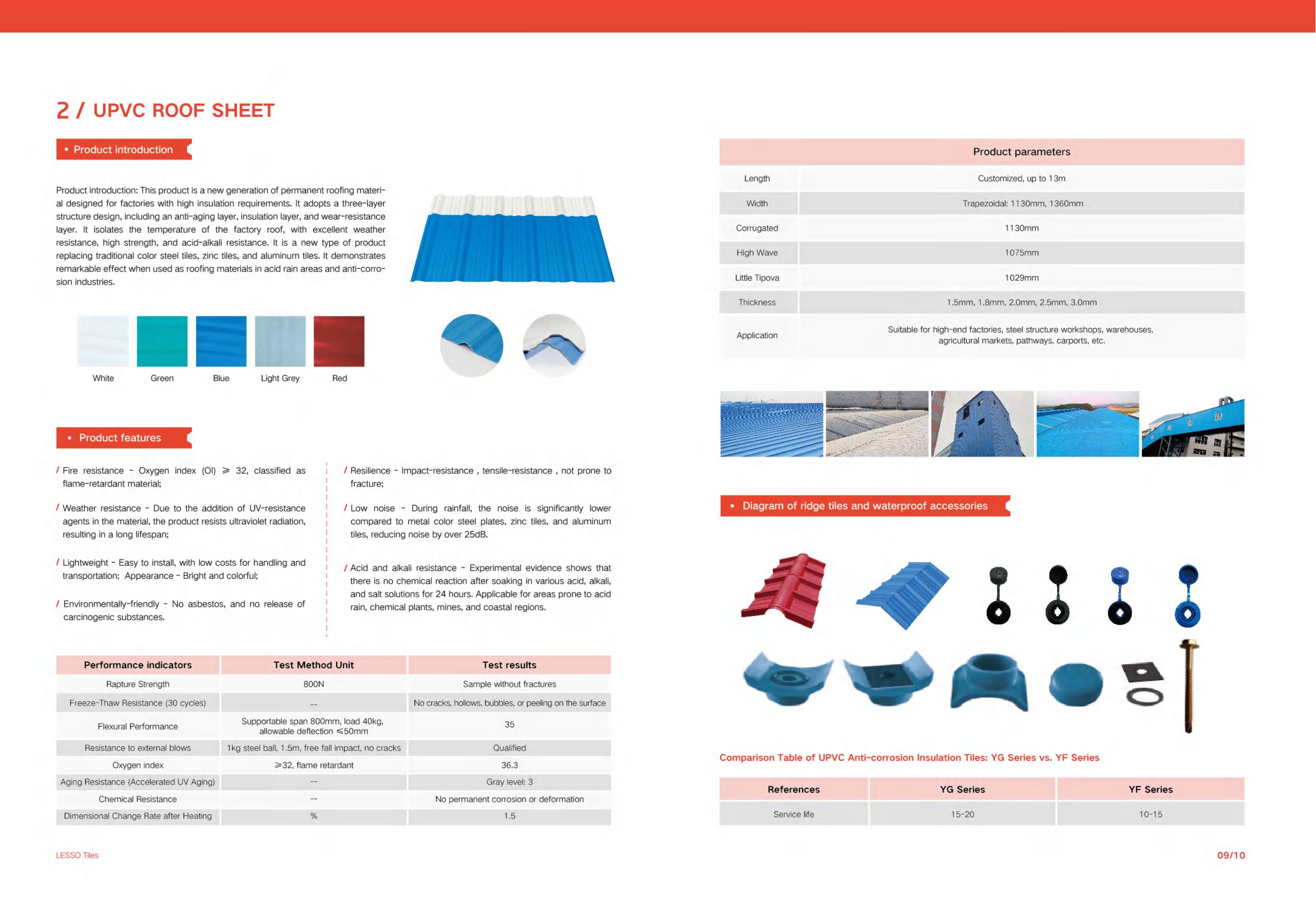

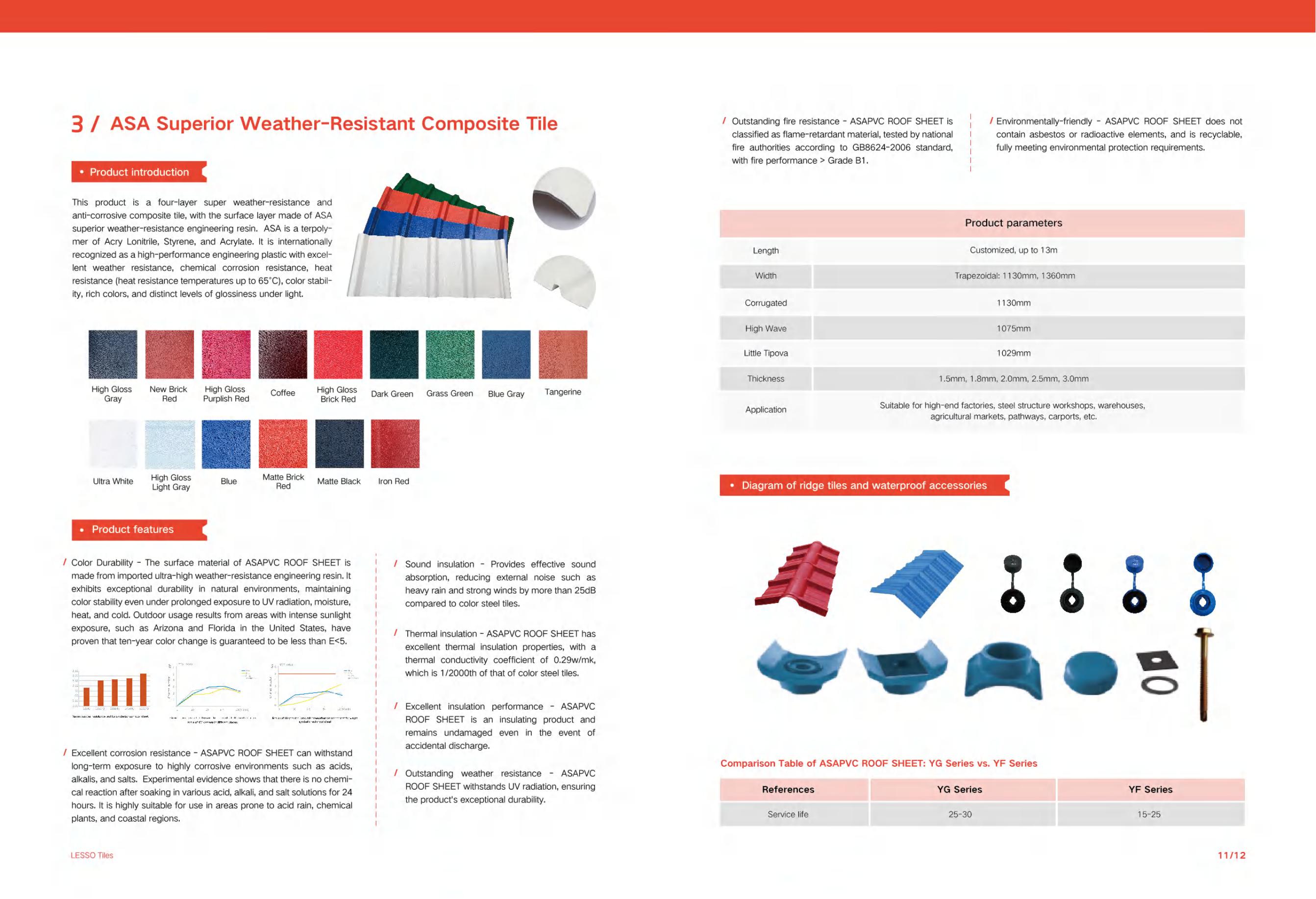

Product introduction:This product is a new generation of permanent roofing materi-al designed for factories with high insulation requirements.It adopts a three-layer structure design,including an anti-aging layer,insulation layer,and wear-resistance layer.It isolates the temperature of the factory roof,with excellent weather resistance,high strength,and acid-alkali resistance.It is a new type of product replacing traditional color steel tiles,zinc tiles,and aluminum tiles.It demonstrates remarkable effect when used as roofing materials in acid rain areas and anti - corro - sion industries.
Product features
Fire resistance -Oxygen index (Ol)>32,classified as flame-retardant material;
Weather resistance -Due to the addition of UV-resistance agents in the material,the product resists ultraviolet radiation, resulting in a long lifespan;
Lightweight-Easy to install,with low costs for handling and transportation;Appearance-Bright and colorful;
Environmentally-friendly No asbestos,and no release of carcinogenic substances.
Resilience -Impact-resistance tensile-resistance not prone to fracture;
Low noise During rainfall,the noise is significantly lower compared to metal color steel plates,zinc tiles,and aluminum tiles,reducing noise by over 25dB.
Acid and alkali resistance Experimental evidence shows that there is no chemical reaction after soaking in various acid,alkali, and salt solutions for 24 hours.Applicable for areas prone to acid rain,chemical plants,mines,and coastal regions.
Performance indicators | Test Method Unit | Test results |
Rapture Strength | 800N Sample without fractures | |
Freeze-Thaw Resistance (30 cycles) | -- | No cracks,hollows,bubbles,or peeling on the surface |
Flexural Performance | Supportable span 800mm,load 40kg, | 35 |
Resistance to external blows | 1kg steel ball,1.5m,free fall impact,no cracks | Qualified |
Oxygen index | ≥32,flame retardant | 36.3 |
Aging Resistance (Accelerated UV Aging) | -- | Gray level:3 |
Chemical Resistance | -- | No permanent corrosion or deformation |
Dimensional Change Rate after Heating | % | 1.5 |

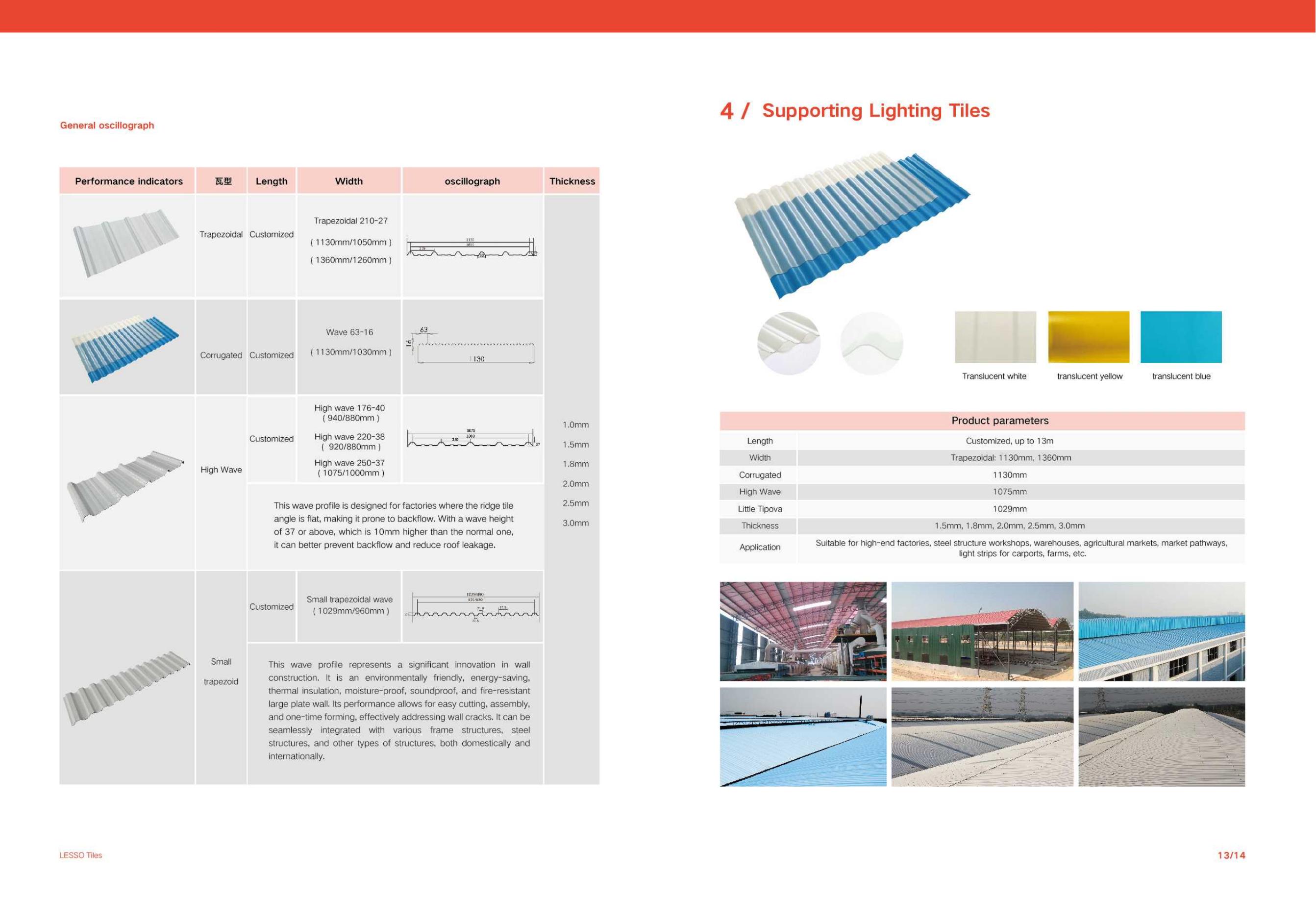

| Product parameters | |
Length Customized,up to 13m | |

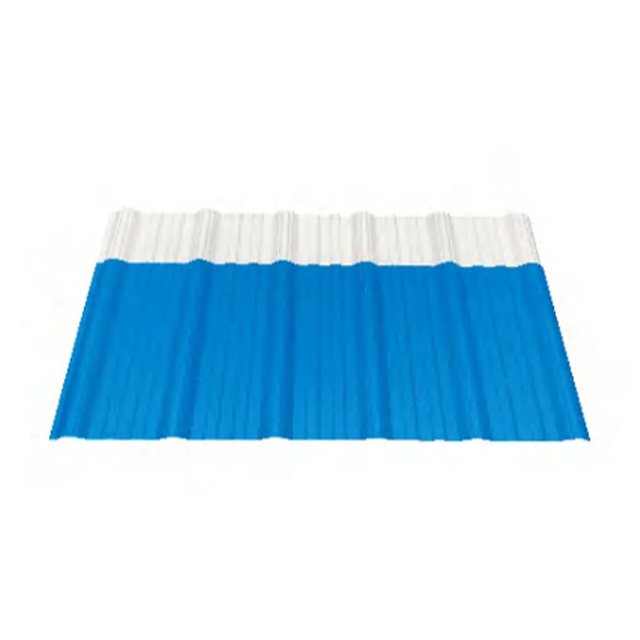

Width | Trapezoidal:1130mm,1360mm |
Corrugated | 1130mm |
High Wave | 1075mm |
Little Tipova | 1029mm |
Thickness | 1.5mm,1.8mm,2.0mm,2.5mm,3.0mm |

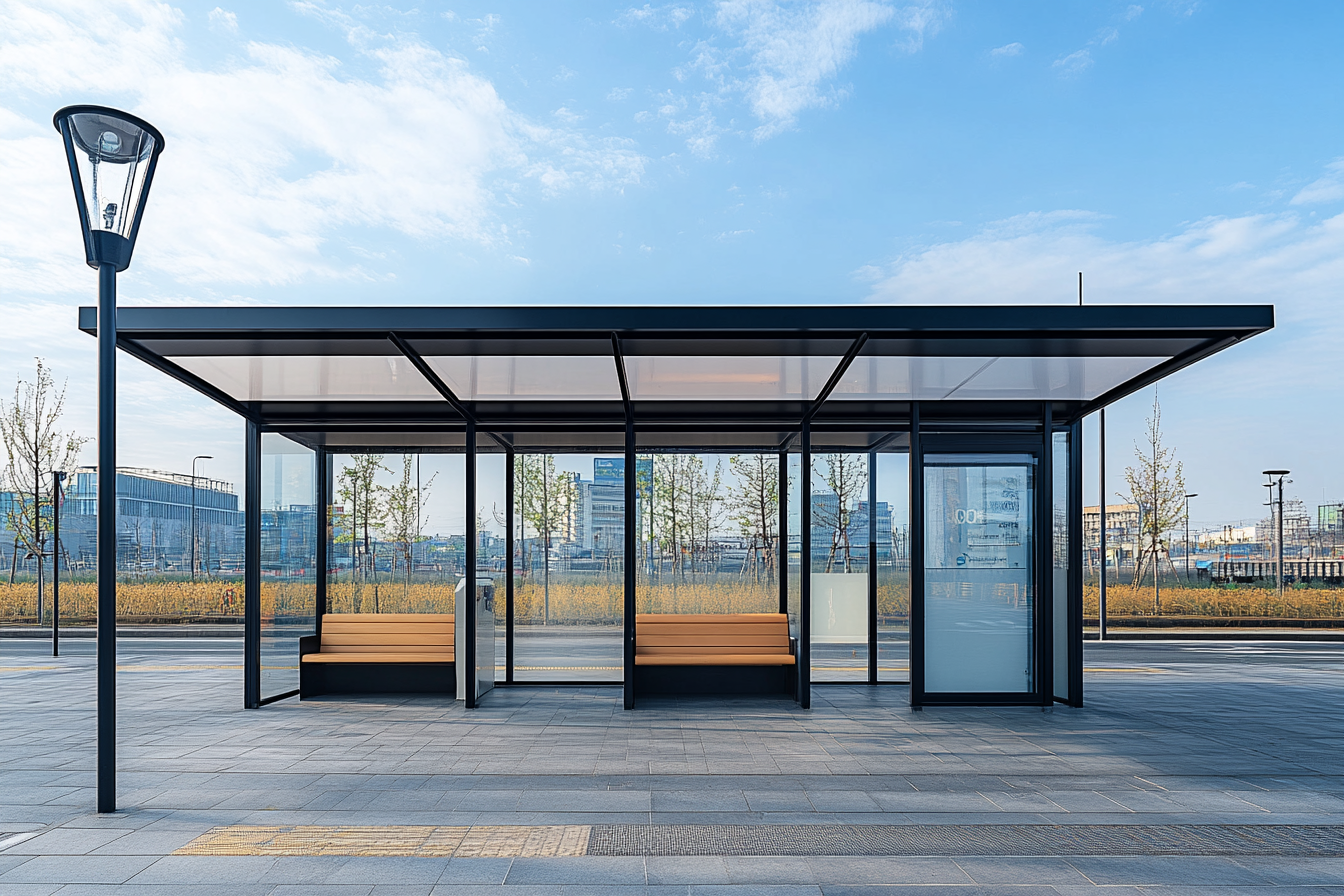

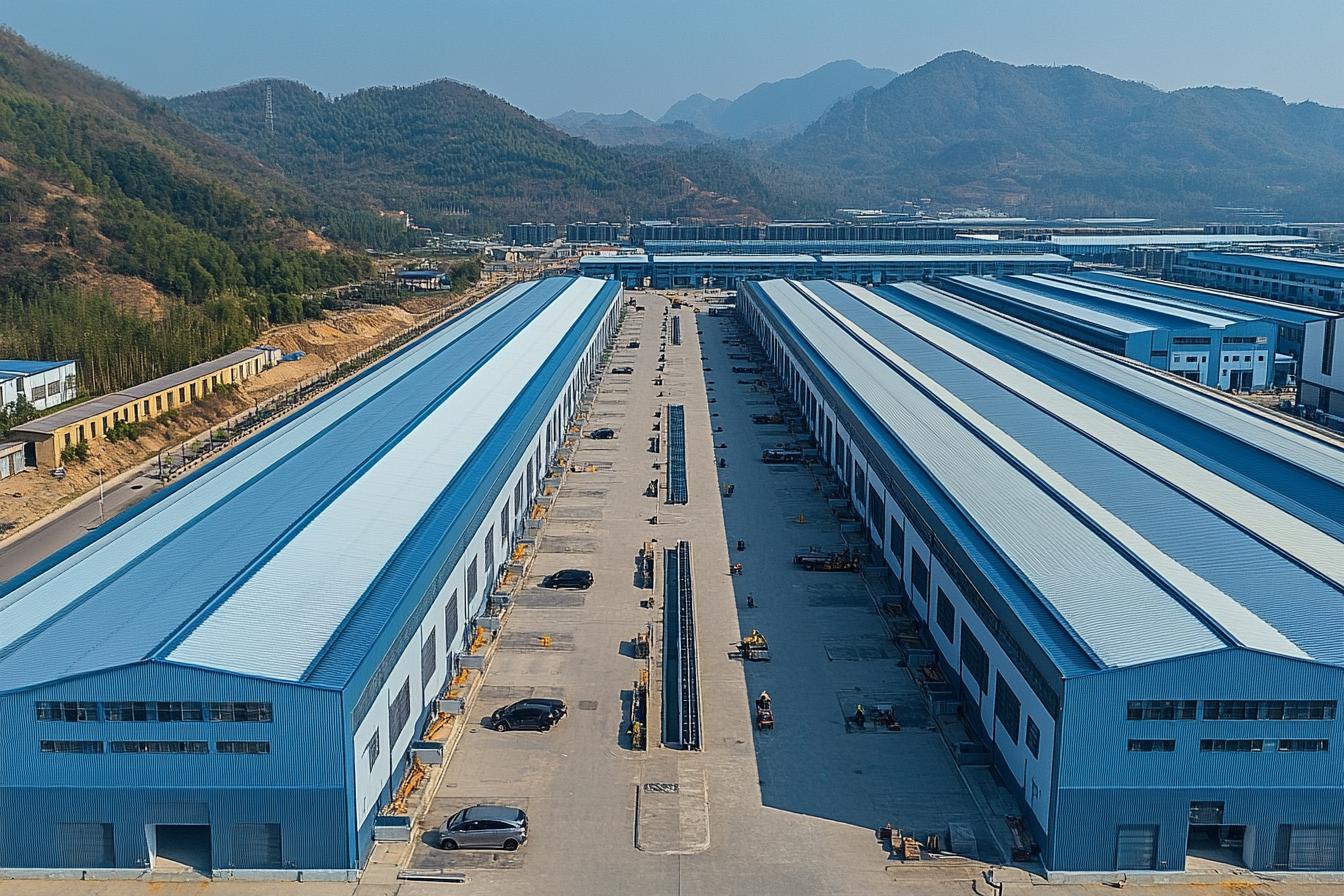

Application | Suitable for high-end factories,steel structure workshops,warehouses |
agricultural markets,pathways,carports,etc. | |

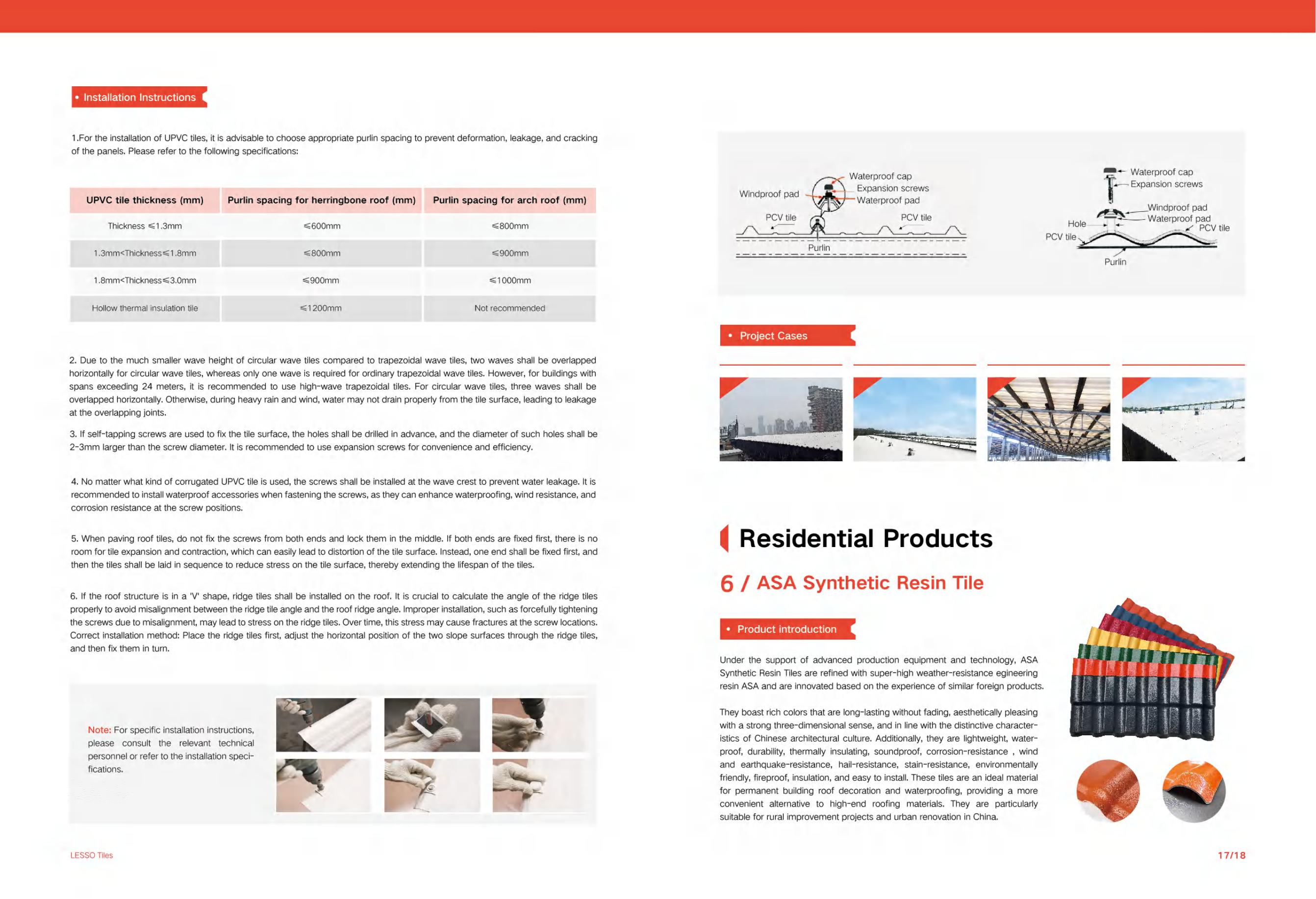

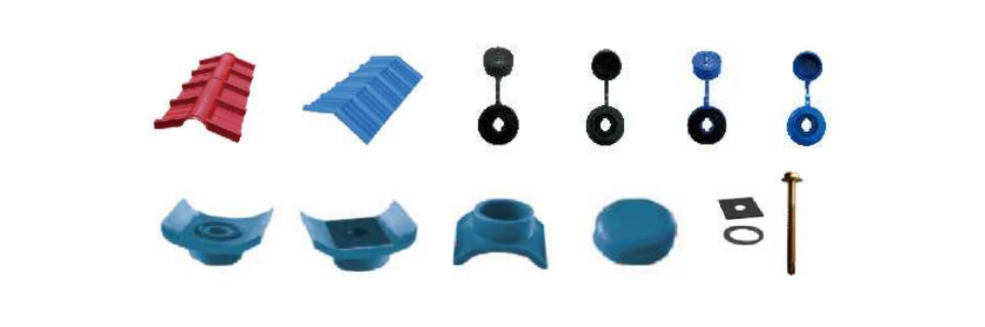

Diagram of ridge tiles and waterproof accessories
| Comparison Table of UPVC Anti-corrosion Insulation Tiles: YG Series vs.YF Series | ||
References | YG Series | YF Series |
Service life | 15-20 | 10-15 |
