Author: Site Editor Publish Time: 2026-04-16 Origin: Site
When researching “Images upvc roofing sheets” , you are likely looking for clear, accurate visuals to help you identify the right product for your project. UPVC roofing sheets come in various profiles, colors, thicknesses, and applications — and seeing the differences side by side is the fastest way to make an informed decision.
This visual guide walks you through everything you need to know, from product types and color options to installation steps and real-world applications. While we cannot embed images directly, we describe each visual in detail and provide searchable image keywords to help you find exactly what you need on Google Images, Alibaba, IndiaMART, or manufacturer websites.

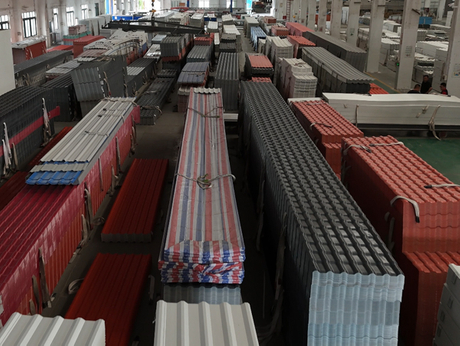

Different profiles serve different purposes. The profile determines water runoff, structural strength, load capacity, and visual appearance.
UPVC roofing sheet corrugated profileWhat you will see: A wavy, repeating wave pattern running the length of the sheet. This is the most common and widely available UPVC roofing sheet type.
Profile description: The waves create channels that efficiently direct rainwater down the roof. The corrugated shape adds stiffness and load-bearing capacity despite the sheet‘s lightweight nature.
Typical specifications:
| Parameter | Value Range |
|---|---|
| Thickness | 2.0 mm – 3.0 mm |
| Width (total) | 880 mm – 1,130 mm |
| Width (effective coverage) | 800 mm – 1,040 mm |
| Length | Customizable (typically 6 ft – 20 ft) |
Best for: Patios, carports, farm sheds, industrial buildings, and general residential roofing. Corrugated sheets offer excellent value for money and are the most commonly stocked option.
How to identify in images: Look for the telltale repeating wave. Lower-profile waves (shallow corrugation) are used for lighter applications; higher-profile waves (deeper corrugation) provide greater rigidity and are used in industrial settings.
UPVC rib type trapezoidal roofing sheetWhat you will see: A sheet with flat panels separated by raised ribs, resembling a series of trapezoids or rectangles. The ribbed design creates a more modern, industrial look.
Profile description: The raised ribs run lengthwise, providing extra strength and allowing wider purlin spacing. This profile is often preferred for larger commercial or industrial roofs where structural efficiency is critical.
Best for: Industrial warehouses, factory buildings, and large commercial structures.
How to distinguish in images: Look for flat surfaces between clearly defined raised ribs — very different from the continuous wave of corrugated sheets.
Spanish tile effect UPVC roofing sheetWhat you will see: A roofing sheet that mimics the look of traditional Spanish clay roof tiles, complete with curved tile shapes and overlapping tile patterns.
Profile description: These sheets are designed to combine the classic, elegant appearance of clay tiles with the lightweight, durable, and low-maintenance benefits of UPVC. The double Roman tile design creates a distinctive barrel-like curve that has been popular in Mediterranean and colonial architecture for centuries.
Best for: Villas, heritage-style homes, resorts, and any building requiring a traditional or high-end aesthetic. Particularly popular for “flat-to-slope” conversion projects and residential roofing.
How to identify in images: Look for the characteristic curved tile shapes arranged in rows — it looks unmistakably like a traditional tiled roof rather than a single continuous sheet. Many products feature a multi-layer ASA coating for enhanced weather resistance and color retention.
UPVC flat roofing sheetWhat you will see: A completely smooth, non-corrugated, flat sheet with no wave pattern or ribs.
Profile description: Flat UPVC sheets are typically thicker and more rigid than their corrugated counterparts. They are used for applications where a flat surface is required — such as roof underlayment, vertical wall cladding, or specialized industrial uses.
Best for: Vertical applications, wall cladding, and specific industrial or chemical-resistant roofing scenarios.
How to identify in images: These sheets are unmistakably flat — no texture, no wave pattern, just a smooth surface from edge to edge.
UPVC roofing sheets are available in a wide palette of colors and finishes to match any architectural style.
UPVC roofing sheet color chartWhat you will see: A display or collage showing multiple UPVC sheets in different colors side by side — typically ranging from neutral earth tones to vibrant modern shades.
Standard colors include: Terracotta / brick red, grey, blue, green, beige, white, and brown.
In some regions, solid opaque colors are more common. These include blue, red, green, grey, and beige — offering full light blockage and enhanced visual appeal for residential and commercial projects.
UPVC roofing sheet matte vs glossy finishWhat you will see: Side-by-side comparison of sheets with different surface treatments — one with a shiny, reflective surface; another with a subdued, non-reflective appearance.
Finish options:
Glossy finish: High shine, reflects light, easy to clean.
Matte finish: Subdued appearance, reduces glare, often preferred for traditional or heritage-style buildings.
How to identify in images: Glossy sheets will have visible reflections and highlights in photos. Matte sheets will appear flat and non-reflective even under direct sunlight.
ASA coated UPVC roofing sheet surfaceWhat you will see: Close-up photographs showing a smooth, uniform surface with vibrant color and no visible imperfections. Some images may show a cross-section revealing the multi-layer structure.
Technical detail: Premium UPVC sheets feature an ASA (Acrylonitrile Styrene Acrylate) coating on the top surface. This engineering plastic layer provides superior weather resistance, UV protection, anti-aging properties, and color retention for up to 15+ years.
How to identify in images: ASA-coated sheets typically appear more vibrant and uniform in color than uncoated alternatives. Look for product descriptions mentioning “ASA” or “multi-layer co-extrusion.”
Understanding how UPVC looks compared to metal, polycarbonate, or traditional clay helps you identify the right product for your needs.
UPVC roofing sheet vs metal sheet side by sideWhat you will see: Two roof sections photographed next to each other — one with UPVC, one with metal (such as galvanized iron or color-coated steel).
Visual differences:
Weight: UPVC sheets are significantly lighter than metal — visible in how they are handled in installation photos. UPVC sheets typically weigh 4–6 kg per square meter, while metal sheets weigh 8–15 kg or more.
Texture: UPVC has a smooth, plastic-like surface; metal has a metallic sheen and may show visible fasteners.
Rust: UPVC never rusts; metal sheets may show signs of rust or coating damage over time, particularly in coastal environments.
Performance differences visible in photos:
Thermal insulation: UPVC has low thermal conductivity and reflects heat effectively. In side-by-side thermal images (infrared photography), UPVC roofs appear cooler than metal roofs under the same sunlight conditions.
Corrosion resistance: UPVC resists salt, chemicals, and moisture. Photos of coastal installations often show rust-free UPVC next to corroded metal.
UPVC vs polycarbonate roofing comparisonWhat you will see: Images comparing the two materials — often showing transparency differences and applications.
Visual differences:
Transparency: Polycarbonate sheets are often transparent or translucent, allowing light to pass through. UPVC sheets are typically opaque (solid) — though some translucent grades exist.
Impact resistance: Polycarbonate has higher impact strength (ideal for skylights and hail-prone areas). In photos, you may see polycarbonate used for greenhouses and canopies, while UPVC is used for solid roofing applications.
Thickness: Polycarbonate sheets are often 6–10 mm thick (much thicker than UPVC‘s 2–3 mm), but this thickness difference is not always visible in standard product photos.
Step-by-step visual guides are invaluable for understanding how UPVC roofing sheets are installed — whether you are a contractor, builder, or DIY homeowner.
UPVC roofing sheet purlin preparationWhat you will see: Photos showing the roof frame structure before sheet installation — typically steel purlins (square tubes or C-shaped channels) or wooden battens spaced at regular intervals.
Key details visible in images:
Purlin spacing: Typically 750–900 mm (approximately 2.5–3 ft) — visible in photos of the bare frame.
Purlin alignment: Purlins run horizontally across the roof slope, providing support for the sheets.
Substrate preparation: Clean, debris-free surface for sheet installation.
Measuring and cutting UPVC roofing sheetsWhat you will see: Photos showing workers marking cut lines on UPVC sheets using tape measures and markers, then cutting with circular saws or jigsaws.
Cutting method visible in images:
Standard woodworking tools (circular saw with fine-tooth blade, jigsaw) — no specialized metal-cutting equipment needed.
Sheets cut to size on the ground before lifting onto the roof.
For curved roofs, images may show curved cutting lines and custom fitting.
What to look for: Clean, straight cut edges without cracking or fraying.
Securing UPVC roofing sheets with screws and washersWhat you will see: Close-up images of fasteners being installed through the sheet and into purlins — typically at the crest (top) of each corrugation.
Installation details visible in images:
Self-tapping screws with neoprene washers (waterproof seals).
Screws placed on wave crests (not troughs) — visible in close-ups of corrugated profiles.
Pre-drilled oversize holes (approximately 2 mm larger than screw diameter) — visible in detailed installation photos.
Important: Do not over-tighten screws. Properly installed washers should be snug but not crushing the sheet — visible as a slight compression of the rubber seal.
UPVC sheet overlap detailWhat you will see: Close-up images showing where two sheets join — both sideways (side overlap) and end-to-end (end overlap).
Overlap requirements visible in images:
Side overlap: At least one full corrugation — approximately 2–3 inches.
End overlap: Minimum 4–6 inches (100–150 mm). For lower roof slopes, larger overlaps are required.
Orientation: Upper sheet overlaps lower sheet, and overlaps are placed on the downwind side — visible in photos of completed roofs.
Completed UPVC roof finished with ridge capsWhat you will see: A fully installed UPVC roof — often with ridge caps installed along the top ridge, edge trims along the eaves, and flashings around chimneys or vents.
Accessories visible in images:
Ridge caps: Cover the peak of the roof, matching the sheet profile (corrugated or ribbed).
Edge trims / flashings: Finish the sides and bottom edges of the roof.
Screw patterns: Regular spacing (typically every 2–3 waves) visible across the sheet surface.
Seeing UPVC roofing sheets installed on actual buildings is the best way to understand how they will look on your own project.
UPVC roof on residential bungalowWhat you will see: Photographs of homes with UPVC roofing — often featuring terracotta red or beige sheets, sometimes with tile-effect profiles for a traditional appearance.
Applications visible: Verandas, carports, patio covers, full house roofs, and “flat-to-slope” conversions.
UPVC roofing on farm shed or agricultural buildingWhat you will see: Images of large agricultural structures (poultry farms, dairy sheds, grain storage) with UPVC roofs — often in white, grey, or blue solid colors.
Why UPVC is used: Chemical resistance (ammonia, fertilizers), no rust in humid conditions, and lightweight for large-span structures.
UPVC roofing on industrial factory or warehouseWhat you will see: Large industrial buildings with rib-type or corrugated UPVC sheets — often in grey or blue — with visible structural steel frames.
Applications visible: Factory roofs, warehouse buildings, and workshop canopies.
UPVC roofing on coastal buildingWhat you will see: Buildings located near the ocean or in high-humidity regions — often with visible salt spray or coastal vegetation in the background.
Why UPVC is ideal: No rust or corrosion, even in salt-laden air — making it superior to metal in these environments.
Flat to slope conversion with UPVC sheetsWhat you will see: Before-and-after images showing a flat concrete roof being converted to a pitched roof using a steel frame and UPVC sheets. The “after” image often shows a dramatic aesthetic improvement, sometimes with tile-effect sheets.
Applications visible: Residential flat-roof conversions, often part of government “flat-to-slope” schemes or home renovation projects.
UPVC sheet chemical plant roofWhat you will see: Industrial facilities (chemical plants, factories with acid or alkaline exposure) using UPVC roofing. Images may show corrosion-resistant installations where metal roofing has failed.
Why UPVC is used: Resists chemical attack from acid vapors and alkaline fumes — unlike metal, which corrodes quickly in such environments.
For technical buyers, detailed close-up images showing material structure and quality indicators are essential.
UPVC sheet cross-section multi-layer structureWhat you will see: A cut-away or cross-sectional image showing the different layers of a premium UPVC sheet.
Layer structure visible (typical 3-layer design):
Top layer (ASA): UV-resistant, weather-resistant, color-retaining. Often slightly thicker and visibly distinct.
Middle layer (PVC/UPVC with additives): Impact-absorbing, insulating, structural core.
Bottom layer (wear-resistant PVC): Scratch-resistant, provides structural rigidity and nail-holding strength.
What to look for: Clear, distinct layers with no delamination or gaps. Multi-layer co-extrusion technology is a hallmark of high-quality UPVC sheets.
UPVC sheet quality check good vs badWhat you will see: Side-by-side comparison of high-quality and low-quality UPVC sheets.
Indicators of quality in images:
Good sheet: Smooth, glossy surface, uniform color, clean edges, no bubbles or pits.
Bad sheet: Dull, chalky appearance; uneven color; visible particles or streaks; rough edges.
UPVC roofing sheet thickness measurementWhat you will see: Close-up images of a caliper or micrometer measuring the edge of a UPVC sheet — showing the exact thickness (e.g., 2.5 mm, 3.0 mm).
Typical thickness range: 2.0 mm to 3.0 mm — do not confuse with polycarbonate sheets (6–10 mm).
What to look for: Consistent thickness across the sheet — no thin spots or variations.
UPVC sheet fastener and washer detailWhat you will see: Extreme close-up of a screw and neoprene washer installed through a UPVC sheet.
Visible details:
Screw penetrating the sheet at a 90-degree angle.
Neoprene washer compressed slightly (but not crushed) against the sheet surface.
Screw head seated properly — not over-driven (which would crack the sheet).
To build your own visual reference library, here are recommended sources:
Alibaba — Thousands of product listings with detailed photos and specification sheets.
IndiaMART — Indian supplier listings with regional product images.
Made-in-China — Chinese manufacturer catalogs with high-resolution product images.
TradeIndia — Indian B2B platform with local supplier photos.
Search for “roofing sheets” or “corrugated plastic roof” — though these may not specifically show UPVC, they provide general reference images.
Many local hardware and building material retailers maintain online catalogs with product images and installation photos.
Commercial photography websites focused on architecture and construction often feature completed UPVC roofing projects.
| Search Intent | Recommended Image Search Keywords |
|---|---|
| Find corrugated UPVC sheets | UPVC corrugated roofing sheet profile |
| Find tile-effect sheets | Spanish tile effect UPVC roofing sheet |
| See color options | UPVC roofing sheet color chart |
| Understand installation | UPVC roofing sheet installation step by step |
| Compare materials | UPVC vs metal roofing comparison |
| See real projects | UPVC roof completed installation |
| Inspect quality | UPVC sheet cross-section |
When evaluating UPVC roofing sheet images online, keep these quality indicators in mind:
Consistent, vibrant color across the entire sheet surface.
Smooth, glossy finish with no visible defects.
Clean, straight edges without rough cutting or fraying.
Clear, distinct multi-layer structure visible in cross-section.
Proper fastener placement (on wave crests) in installation photos.
Even purlin spacing in frame preparation photos.
Dull, chalky, or uneven surface appearance.
Visible bubbles, pits, or particles embedded in the material.
Yellowing or discoloration (especially in product photos — if the sample looks yellow, the actual product may be worse).
No visible UV or ASA coating mentioned in product labels within the image.
Inconsistent thickness visible at sheet edges.
A: Corrugated sheets have a continuous wave pattern resembling a sine wave — visible as repeating curves across the sheet surface. Rib-type sheets have flat panels separated by raised ribs — visible as distinct rectangular or trapezoidal raised sections.
A: You cannot see UV protection directly — it is a chemical additive. However, images of high-quality UPVC sheets often include labels indicating “UV10” or “UV stabilized” on the product packaging or datasheet overlay. The sheet‘s surface may also appear more vibrant and glossy than non-UV alternatives.
A: Yes. Translucent UPVC sheets allow diffused light to pass through. In images, you can see light visibly penetrating the sheet — often used for greenhouses and covered walkways. However, most UPVC sheets are opaque for privacy and UV protection.
A: Poor-quality sheets often appear dull, chalky, or uneven in color. Close-up images may reveal bubbles, pits, or visible particles embedded in the surface. The sheet may also appear warped or uneven along its length.
A: ASA-coated sheets typically have a more vibrant, uniform color and smoother surface than uncoated alternatives. Product images often include text overlays mentioning “ASA coating” or “ASA co-extrusion.” In cross-section images, you can see a distinct top layer (the ASA layer) above the base UPVC material.
Searching for “Images upvc roofing sheets” is an essential first step in any roofing project. Visual references help you:
Identify the correct profile — corrugated, rib-type, Spanish tile, or flat — for your application.
Select the right color — from classic terracotta to modern blue, green, or grey.
Verify quality indicators — smooth surfaces, uniform color, proper fastener placement.
Understand installation requirements — purlin spacing, overlaps, and accessories.
Visualize the finished look — by reviewing completed project photos.
Remember that not all UPVC sheets are created equal. Use images not just for aesthetics but to verify quality indicators: smooth, glossy surfaces; uniform color; proper multi-layer cross-sections; and clear labeling of UV protection and ASA coating.
When evaluating supplier images, look for high-resolution photos that show details clearly. If images appear blurry, overly compressed, or deliberately cropped to hide defects, consider requesting additional photos or physical samples before purchasing.
Need more help selecting the right UPVC roofing sheets? Contact us for free samples, technical datasheets, and custom image references for your specific project requirements.
