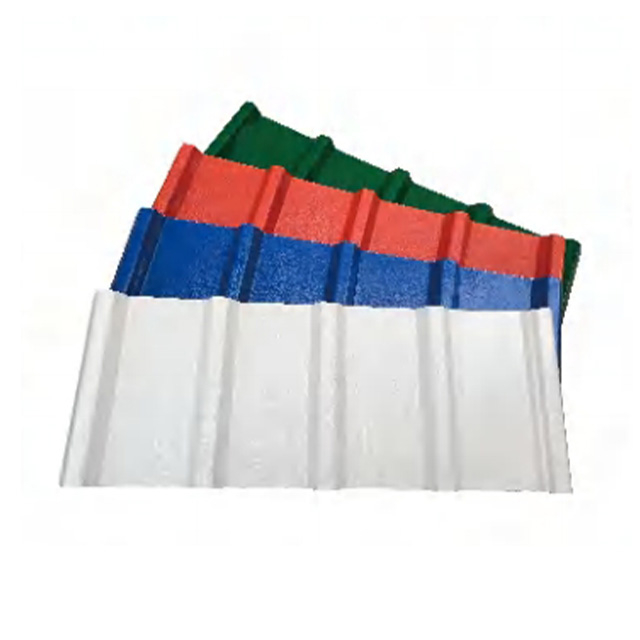

ASA SUPERIOR WEATHER-RESISTANT COMPOSITE TILE

Quantity:
Color:	High Gloss Gray New Brick Red High Gloss Purplish Red Coffee High Gloss Brick Red Tangerine Matte Black Dark Green Grass Green Blue Gray Ultra White Light Gray High Gloss Blue Matte Brick Red Iron Red
Availability:





Inquire Add to Basket

This product is a four-layer super weather-resistance and anti-corrosive composite tile,with the surface layer made of ASA superior weather-resistance engineering resin.ASA is a terpoly- mer of Acry Lonitrile,Styrene,and Acrylate.It is internationally recognized as a high-performance engineering plastic with excel- lent weather resistance,chemical corrosion resistance,heat resistance (heat resistance temperatures up to 65C),color stabil- ity,rich colors,and distinct levels of glossiness under light.

Product features

Color Durability -The surface material of ASAPVC ROOF SHEET is made from imported ultra-high weather-resistance engineering resin.It exhibits exceptional durability in natural environments,maintaining color stability even under prolonged exposure to UV radiation,moisture, heat,and cold.Outdoor usage results from areas with intense sunlight exposure,such as Arizona and Florida in the United States,have proven that ten-year color change is guaranteed to be less than E<5.

Excellent corrosion resistance -ASAPVC ROOF SHEET can withstand long-term exposure to highly corrosive environments such as acids, alkalis,and salts.Experimental evidence shows that there is no chemi- cal reaction after soaking in various acid,alkali,and salt solutions for 24 hours.It is highly suitable for use in areas prone to acid rain,chemical plants,and coastal regions.

Sound insulation Provides effective sound absorption,reducing external noise such as heavy rain and strong winds by more than 25dB compared to color steel tiles.

Thermal insulation-ASAPVC ROOF SHEET has excellent thermal insulation properties,with a thermal conductivity coefficient of 0.29w/mk, which is 1/2000th of that of color steel tiles.

Excellent insulation performance -ASAPVC ROOF SHEET is an insulating product and remains undamaged even in the event of accidental discharge.

Outstanding weather resistance ASAPVC ROOF SHEET withstands UV radiation,ensuring the product's exceptional durability.

Outstanding fire resistance-ASAPVC ROOF SHEET is classified as flame-retardant material,tested by national fire authorities according to GB8624-2006 standard, with fire performance Grade B1.

Environmentally-friendly ASAPVC ROOF SHEET does not contain asbestos or radioactive elements,and is recyclable, fully meeting environmental protection requirements.

Product parameters
Length	Customized,up to 13m
Width	Trapezoidal:1130mm,1360mm
Corrugated	1130mm
High Wave	1075mm
Little Tipova	1029mm
Thickness	1.5mm,1.8mm,2.0mm,2.5mm,3.0mm
Application	Suitable for high-end factories,steel structure workshops,warehouses,
Application	agricultural markets,pathways,carports,etc.

Diagram of ridge tiles and waterproof accessories

Comparison Table of UPVC Anti-corrosion Insulation Tiles: YG Series vs.YF Series
References	YG Series	YF Series
Service life	15-20	10-15

1. Agricultural greenhouse lighting system

Using translucent roof panels (such as ROYAL 1050), by adjusting the transmittance of 40-80% to optimize the plant growth spectrum, and simultaneously blocking UV-B band radiation, its diffuse reflection characteristics avoid local overheating, achieve a balance between natural light effect and light protection, and improve the yield and quality of greenhouse crops.

2. Corrosion-resistant roof of chemical plant

Synthetic resin roof panels use a perfluoropolymer surface to build a chemical barrier, tolerate pH1-12 acid-base environment, and cooperate with hollow structures. The thermal resistance R value reaches 1.2m²·K/W, and maintains dimensional stability under a temperature difference of -40℃ to 120℃, becoming the preferred solution for maintenance-free roofs in chemical areas.

3. Light rail platform awnings

UPVC small trapezoidal panels increase the bending modulus by 25% through the trapezoidal wave peak design, and achieve 12-meter column-free span installation. Its self-cleaning nano-coating is combined with a 15° slope drainage system to ensure zero water accumulation on the platform during heavy rain, and the B1-level flame retardant performance meets the rail transit fire protection standards.

4. Cold chain storage insulation roof

The hollow roof board adopts five-layer co-extrusion technology to form a 2cm thick honeycomb closed-cell structure with a thermal conductivity as low as 0.032W/m·K, which is 40% energy-saving compared with traditional color steel tiles. It is combined with an aluminum foil reflective layer to block 95% of infrared radiation and reduce the compressor operation time by 30% when maintaining a warehouse temperature of -25℃.

5. Villa light guide lighting system

The combined roof adopts a prismatic translucent board + a 3mm thick UPVC impact-resistant layer, which transmits sunlight to the underground space through a fully reflective light guide tube. The illumination value reaches 800lux, and the electric blinds are used to adjust the amount of light entering, achieving a 65% reduction in lighting energy consumption throughout the year.

6. Offshore aquaculture awning

The ASAPVC sheet has no aging after 3000 hours of salt spray test. Its gradient color change technology automatically adjusts the light transmittance (50-20% changes with the intensity of sunlight), providing a bionic light environment for marine cultivation, and with the design of 12-level typhoon-resistant reinforcement ribs, it ensures the stable operation of the marine ranch.

APVC roofing board Translucent roofing board Single-layer roofing board Hollow tile Synthetic resin tile
