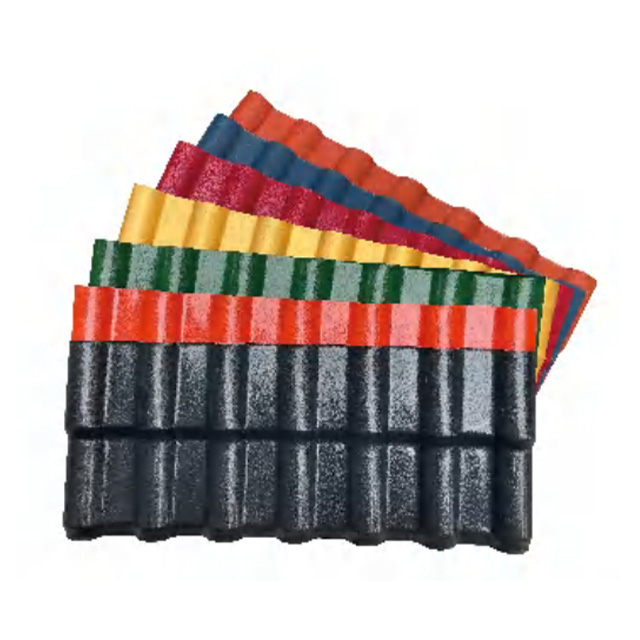

Under the support of advanced production equipment and technology,ASA Synthetic Resin Tiles are refined with super-high weather-resistance egineering resin ASA and are innovated based on the experience of similar foreign products. They boast rich colors that are long-lasting without fading,aesthetically pleasing with a strong three-dimensional sense,and in line with the distinctive character- istics of Chinese architectural culture.Additionally,they are lightweight,water- proof,durability,thermally insulating,soundproof,corrosion-resistance wind and earthquake-resistance,hail-resistance,stain-resistance,environmentally friendly,fireproof,insulation,and easy to install.These tiles are an ideal material for permanent building roof decoration and waterproofing,providing a more convenient alternative to high-end roofing materials.They are particularly suitable for rural improvement projects and urban renovation in China.
Product features
Long-lasting Color:Despite prolonged exposure to harsh conditions such as ultraviolet rays, moisture,heat,and cold,the color maintains stable.
Good sound insulation:Effectively absorbs external noise from heavy rain,strong winds,etc.
Impact resistance:Withstands a 1 kg steel ball falling freely from 3m without breaking.
Quick installation:High installation efficiency,minimal overlap loss,lightweight,easy to install and remove, complete installation accessories.
Stable volume:Expansion coefficient of 4.9x10mm/m- m/C;accommodates temperature changes without significant dimensional changes.
Strong fire resistance:Tested by national fire authorities according to GB8624-2006 standard,achieving B1 fire resistance rating,classified as flame-retardant material.
Environmentally friendly:No asbestos,fiberglass,or radioactive elements;recyclable.
Excellent load-bearing capacity:Withstands a load of 150kg over a support distance of 660mm without cracking or damage.
Excellent corrosion resistance:No chemical reactions after immersed in salt,alkali,and various acids below 60%concen- tration for 24 hours.
Excellent self-cleaning performance:Resists dust adhesion, easily cleaned by rainwater to maintain a fresh appearance without patchy discoloration.
Excellent thermal insulation: Thermal conductivity of 0.325W/m.k,approximately 1/310 of clay tiles,1/5 of cement tiles,and 1/2000 of 0.5mm thick color steel tiles.
Excellent waterproof performance:Dense and non-absorbent, eliminating the issue of water seepage through micropores.
Excellent insulation performance:Insulates against accidental discharge without damage.
| Product parameters | |
Width 1050mm,880mm | |
Thickness | Customizable from 2.0mm to 3.0mm |
Effective width 1050mm/960mm,880mm/800mm | |
Length | Customized according to the pitch,pitch length 219mm |
Wave height 30mm | |
Wave spacing | 160mm |
Application Villas,resorts,gardens,pavilions,road landscape renovations,municipal renovation projects,etc. | |
| Comparison Table of UPVC Anti-corrosion Insulation Tiles:YG Series vs.YF Series | ||
References | YG Series | YF Series |
Service life | 15-20 | 10-15 |
