Synthetic resin roof panels use a perfluoropolymer surface to build a chemical barrier, tolerate pH1-12 acid-base environment, and cooperate with hollow structures. The thermal resistance R value reaches 1.2m²·K/W, and maintains dimensional stability under a temperature difference of -40℃ to 120℃, becoming the preferred solution for maintenance-free roofs in chemical areas.
3. Light rail platform awnings
UPVC small trapezoidal panels increase the bending modulus by 25% through the trapezoidal wave peak design, and achieve 12-meter column-free span installation. Its self-cleaning nano-coating is combined with a 15° slope drainage system to ensure zero water accumulation on the platform during heavy rain, and the B1-level flame retardant performance meets the rail transit fire protection standards.
4. Cold chain storage insulation roof
The hollow roof board adopts five-layer co-extrusion technology to form a 2cm thick honeycomb closed-cell structure with a thermal conductivity as low as 0.032W/m·K, which is 40% energy-saving compared with traditional color steel tiles. It is combined with an aluminum foil reflective layer to block 95% of infrared radiation and reduce the compressor operation time by 30% when maintaining a warehouse temperature of -25℃.
5. Villa light guide lighting system
The combined roof adopts a prismatic translucent board + a 3mm thick UPVC impact-resistant layer, which transmits sunlight to the underground space through a fully reflective light guide tube. The illumination value reaches 800lux, and the electric blinds are used to adjust the amount of light entering, achieving a 65% reduction in lighting energy consumption throughout the year.
6. Offshore aquaculture awning
The ASAPVC sheet has no aging after 3000 hours of salt spray test. Its gradient color change technology automatically adjusts the light transmittance (50-20% changes with the intensity of sunlight), providing a bionic light environment for marine cultivation, and with the design of 12-level typhoon-resistant reinforcement ribs, it ensures the stable operation of the marine ranch.
FAQ

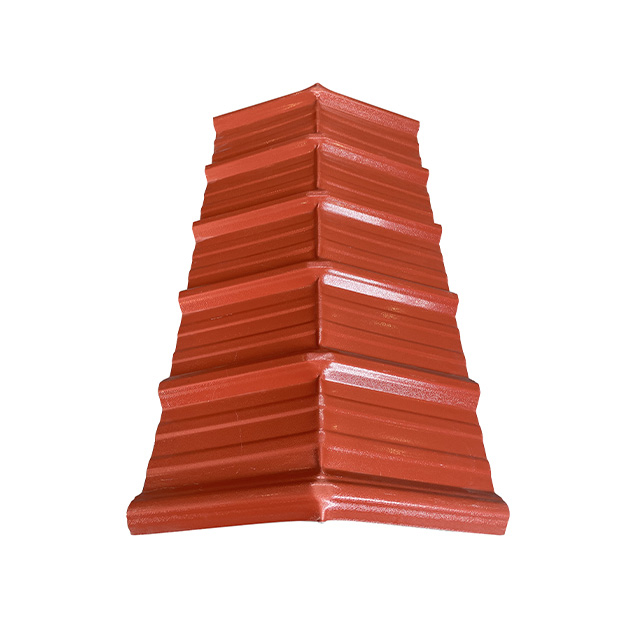

Q: Why is the Ridge Tile so important for a roof?
A: The ridge is the highest point of a sloped roof and the most susceptible to leaks and wind damage. The Ridge Tile acts as a protective cap, sealing the gap between roofing sheets to ensure the structure remains dry and prevents wind from lifting the main tiles.
Q: Are these ridge tiles compatible with different roof pitches?
A: Yes. Our synthetic resin ridge tiles possess a degree of physical flexibility. They can be adjusted during installation to fit a wide range of roof angles (typically from 20° to 45°) without compromising their waterproof integrity or structural strength.
Q: How many ridge tiles should I order for my roof?
A: To calculate the quantity, divide the total length of the roof's horizontal ridge by the effective length of one tile. Always account for a 10cm to 15cm overlap between tiles to ensure a continuous waterproof seal.
Q: Do I need special sealant when installing ridge tiles?
A: While the physical overlap provides excellent protection, we recommend using our waterproof screw sets with EPDM washers for fastening. In areas with extreme rainfall, applying a small amount of neutral silicone sealant at the overlaps can provide an extra layer of security.
Q: Will the ridge tiles maintain their color over time?
A: Yes. Our ridge tiles utilize ASA co-extrusion technology, the same as our main roofing sheets. This provides excellent UV resistance, ensuring the ridge stays the same color as the rest of the roof for over 15–20 years.
