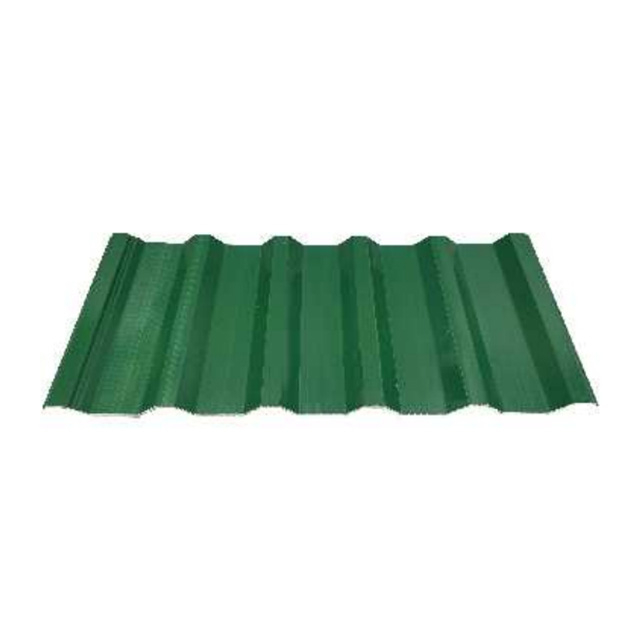

Upvc Hollow Tile

Innovative UPVC Hollow Tiles for Superior Thermal & Acoustic Insulation Our UPVC Hollow Tiles feature an advanced twin-wall cellular structure designed to provide exceptional heat insulation and soundproofing performance. By creating an internal air layer, these tiles significantly reduce heat transfer and dampen noise from rain and wind, making them ideal for temperature-sensitive factories and residential buildings. Engineered with high-impact UPVC and a UV-resistant surface, they offer outstanding corrosion resistance and structural strength. These lightweight, energy-efficient tiles are the ultimate roofing solution for creating a quiet, cool, and durable indoor environment.
Color:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Advantages

企业微信截图_17680156512企业微信截图_1768015654964企业微信截图_17680154374115企业微信截图_17680154449964企业微信截图_17680156303190企业微信截图_17680156409160企业微信截图_17680156445094企业微信截图_17680156474253

Roducts Features

This product features a hollow design structure,offering superior performance in anti-aging,anti-corrosion,and thermal insulation compared to ordinary composite tiles.As a result,it has a longer lifespan,is less prone to fading,and provides better thermal insulation.The thermal insulation effect can differ by 10-15'C compared to regular anti-corrosion tiles,extending the product's lifespan.It also boasts a smoother surface finish,enhancing aesthetics, durability against acids and alkalis,and providing sound insulation.

Due to the stronger rigidity of UPVC hollow tiles compared to single-layer anti-corrosion tiles,the distance between purlins during installation can be 1 200mm,directly reducing construction costs by less procurement.

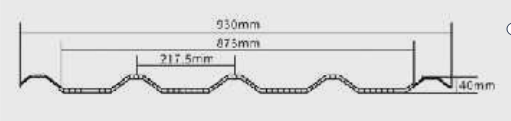

Length

Customized







1


Width

930mm

Effective width

875mm

Thickness

10mm

Wave spacing

217.5mmmm

Wave height

40mm

Application

Suitable for high-end factories, steel structure workshops, warehouses, agricultural markets, pathways, carports, etc.

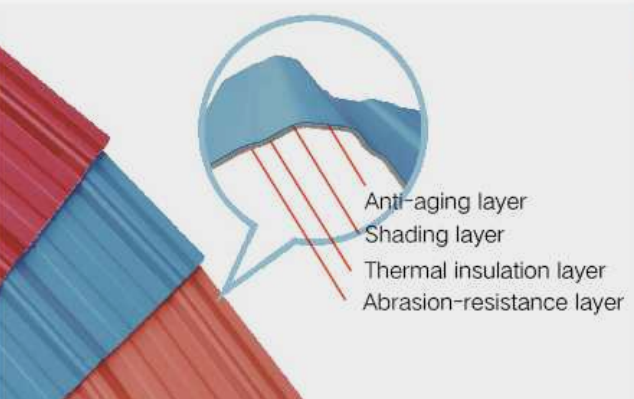

Summary of Composite Structure Analysis for Series Tiles

2

Number of layers

Hollow tile oscillograph

Single layer

UPVC SINGLE ROOF SHEET,Translucent

Two-layer

UPVC Hollow Tile

Three-layer

UPVC ROOF SHEET,UPVC Hollow Translucent Tile

Four-layer

ASAPVC ROOF SHEET,Synthetic Resin Tile, Roman Roof Sheet


6


微信截图_20250422223954

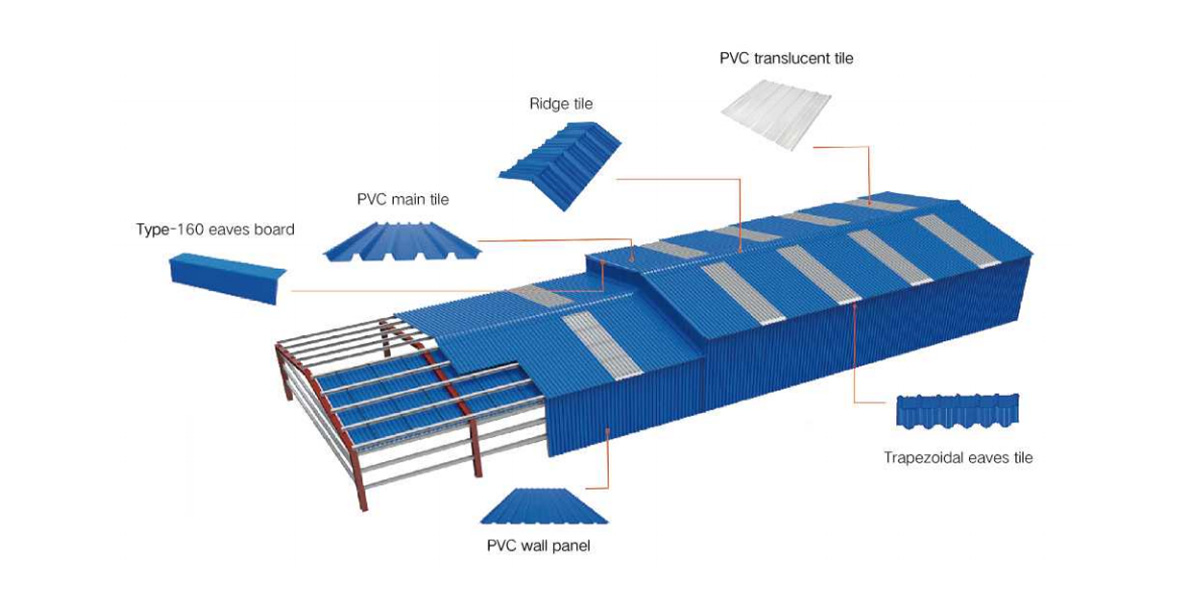

PVC Series Installation Diagram

Flat ridge tile
2000x300x300(mm)

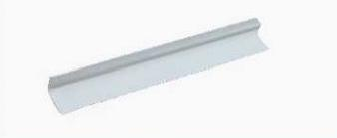

90°eave seal drainage strip
40x15x15(mm)

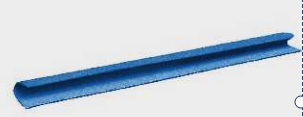

J-type trim for wall panel
50x24x30(mm)

4


5


6

Type-160 eaves board
2000x160x140(mm)

Type-12090°eaves board
2000x120x120(mm)

PVC facade flashing
   1350x200x180(mm)

7

8

9



Application

ab16587788b76b6ceecf7b82d1cf83df



1. Agricultural greenhouse lighting system

Using translucent roof panels (such as ROYAL 1050), by adjusting the transmittance of 40-80% to optimize the plant growth spectrum, and simultaneously blocking UV-B band radiation, its diffuse reflection characteristics avoid local overheating, achieve a balance between natural light effect and light protection, and improve the yield and quality of greenhouse crops.




38b5316b80d4991517b17dc88efd6fe5



2. Corrosion-resistant roof of chemical plant

Synthetic resin roof panels use a perfluoropolymer surface to build a chemical barrier, tolerate pH1-12 acid-base environment, and cooperate with hollow structures. The thermal resistance R value reaches 1.2m²·K/W, and maintains dimensional stability under a temperature difference of -40℃ to 120℃, becoming the preferred solution for maintenance-free roofs in chemical areas.



275d00b56bfdeca8e5cf9bafdb45d7ec



3. Light rail platform awnings

UPVC small trapezoidal panels increase the bending modulus by 25% through the trapezoidal wave peak design, and achieve 12-meter column-free span installation. Its self-cleaning nano-coating is combined with a 15° slope drainage system to ensure zero water accumulation on the platform during heavy rain, and the B1-level flame retardant performance meets the rail transit fire protection standards.



bb3ef43c6990b86fed69dfee57314681



4. Cold chain storage insulation roof

The hollow roof board adopts five-layer co-extrusion technology to form a 2cm thick honeycomb closed-cell structure with a thermal conductivity as low as 0.032W/m·K, which is 40% energy-saving compared with traditional color steel tiles. It is combined with an aluminum foil reflective layer to block 95% of infrared radiation and reduce the compressor operation time by 30% when maintaining a warehouse temperature of -25℃.



8a19f0942ae176fbae77c48d960bf580



5. Villa light guide lighting system

The combined roof adopts a prismatic translucent board + a 3mm thick UPVC impact-resistant layer, which transmits sunlight to the underground space through a fully reflective light guide tube. The illumination value reaches 800lux, and the electric blinds are used to adjust the amount of light entering, achieving a 65% reduction in lighting energy consumption throughout the year.



f792547f10269b12caa441fcd872eca5



6. Offshore aquaculture awning

The ASAPVC sheet has no aging after 3000 hours of salt spray test. Its gradient color change technology automatically adjusts the light transmittance (50-20% changes with the intensity of sunlight), providing a bionic light environment for marine cultivation, and with the design of 12-level typhoon-resistant reinforcement ribs, it ensures the stable operation of the marine ranch.






FAQ

Q: What are the main benefits of the "Hollow" structure in UPVC tiles?
A: The hollow (twin-wall) design creates an internal air chamber that acts as a natural barrier. This significantly improves thermal insulation, keeping interiors up to 8°C-10°C cooler in summer, and provides excellent acoustic insulation by absorbing noise from heavy rain or hail.

Q: Are UPVC Hollow Tiles strong enough to handle heavy loads?
A: Yes. Despite being lightweight, the internal "ribbed" structure provides high longitudinal and transverse strength. This cellular design offers a superior strength-to-weight ratio, allowing the tiles to withstand significant wind pressure and snow loads in industrial applications.

Q: How do these tiles perform in corrosive chemical environments?
A: They perform exceptionally well. UPVC is naturally resistant to acids, alkalis, and salts. Because the material is non-corrosive throughout, our UPVC Hollow Tiles are perfect for chemical plants, plating factories, and coastal warehouses where metal roofing would quickly rust.

Q: Will the air inside the hollow chambers cause expansion or cracking?
A: No. Our tiles are engineered with high-quality stabilizing agents and precise wall thickness to manage thermal expansion. The hollow structure actually helps distribute thermal stress more evenly than solid sheets, preventing warping or cracking in extreme temperature fluctuations.

Q: Is the installation of hollow tiles different from standard PVC tiles?
A: The installation process is very similar and highly efficient. However, we provide specialized waterproof end-caps to seal the hollow chambers at the eaves. This prevents dust, insects, or moisture from entering the internal structure, maintaining the tile’s insulation properties and aesthetic for decades.
